September 15, 2014   Posted by: Dr. Ace Jeangle

LCD holder for RaspberryPi and Beaglebone Black


Well, today is Monday, and here is our last release - LCD holder

We design all of our new video converter boards with all components on top side only. As a result, flat bottom side allows to stick board on back side of LCD, like we did for our new 7"/10" integrated platforms, and just released dualLVDS converter. But what about main board, like RaspberryPi, Beaglebone, etc? They have components on both sides and we are forced to place them right on table or look for enclosure. That's why we made LCD holder for these boards - simple board with low profile metal standoffs and flat bottom side.

Here is Beaglebone Black mounted on LCD holder: LCD holder with Beaglebone
Board height is increased just a little bit (less than 1 mm in this case measuring from mini-USB connector on bottom side of Beaglebone), but now it has flat surface and can be fixed on bottom side of LCD with double-sided glue tape, providing fully integrated solution for your projects.

LCD holder has holes for RaspberryPi, RaspberryPi B+, and Beaglebone Black: LCD holder - 3 boards
We are going to offer this board as an accessory for our new LCD bundles, and you will be able to select holder for your mainboard.

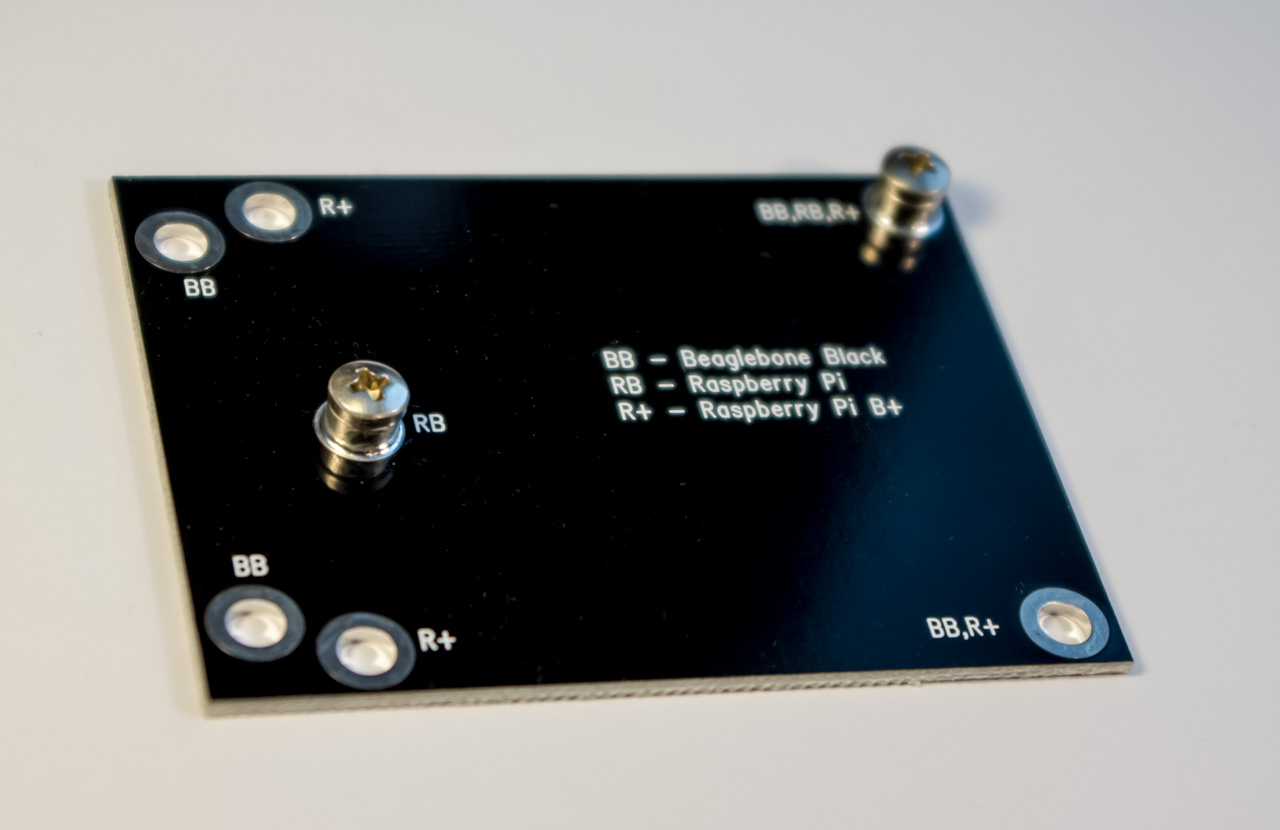

Each board will be supplied with mounting screws LCD holder, top view
